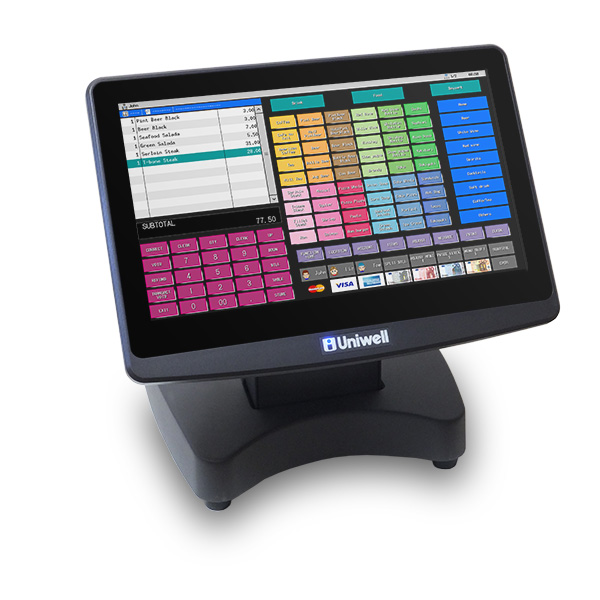

HX-3500 – Compact embedded touch screen POS

This purpose-built 11.6” touch screen POS terminal is set to change the compact POS landscape, with an incredibly powerful feature-set that lends itself to hospitality and food retail venues of all shapes and sizes.

Consider the following benefits of the HX-3500 to your business:

Compact, yet powerful – With a 11.6” bezel-free, capacitive touch screen, the HX-3500 is more economical cost but with the same
most power of the upper-class POS. Uniwell has over 40 years of experience designing and building POS hardware that has earned the reputation of being robust, reliable and easy to use.

Reliability – Uniwell’s proprietary embedded technology removes risk areas in relation to system reliability. POS features are specifically designed to be robust and easy to operate. Third-party applications can’t be loaded onto the dedicated POS terminal, so stability is not compromised.

Operational speed – At Uniwell we have been developing and refining our POS technology for decades. A properly configured Uniwell POS system provides superior functionality, while still being faster and simpler to use for an operator than many other point of sale products.

Security – An embedded POS terminal is an ‘all-in-one’ solution with no separation between operating system and POS application. This singular purpose provides greatly enhanced security, as users can’t access the internet and introduce external information to the POS terminal’s memory.

Purpose-built hardware – Our POS terminals are specifically designed to cope with the day-to-day requirements of high-volume hospitality and retail venues. Uniwell has a long-standing reputation for quality POS hardware that can handle the physical workload that a standard tablet, laptop or PC may not.

We encourage you to consider the HX-3500 – ‘Compact POS Without Compromise’!

HX-3500 Brochure

pdf opens in new tab

HX-3500 Features

Hardware Features
11.6 inch bezel-free and true-flat touch screen display with enhanced splash-proof performance
Capacitive touch screen with superior durability
Built-in Wi-Fi (IEEE802.11 b/g/n)
Built-in Bluetooth (V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0)
Portable storage devices (USB)
Handheld Order Entry support
Graphic LCD Customer Display support
CashGuard interface (cash recycle/cash dispenser)
Drink dispenser interface
Caller ID interface (telephone ordering system)
Table Management
Table tracking with floating track capability
Extensive condiment items for meal options
Cooking instruction features
Handwritten cooking message
Powerful kitchen printing facilities
Split bill functionality by item or seat
Checkout bill
Deposit
Graphic table maps
Pay ay Table
QSR and Fast Food
Customized receipt
Extensive topping
Take out/eat-in system with combo menus
Drive through
Web ordering system integration
Retail
Various promotion types including
Mix and Match, Meal Deals, Coupons and more
Stock control
Weight/Price embedded barcode and source marking code
Integrated scale features
Customer Management
Customer account tracking
Simple loyalty features
Room/Loyalty
Mifare card (RFID card) Customer Loyalty
Other Features
Extensive internal reporting options
Electronic journal storage
Remote maintenance facility
Integration with back-office POS management and reporting software
SQL Database
Accessible sales database for custom reporting

And more!

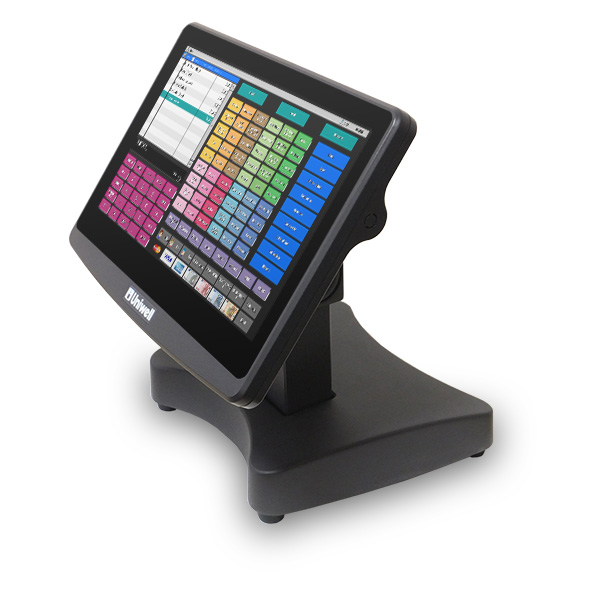

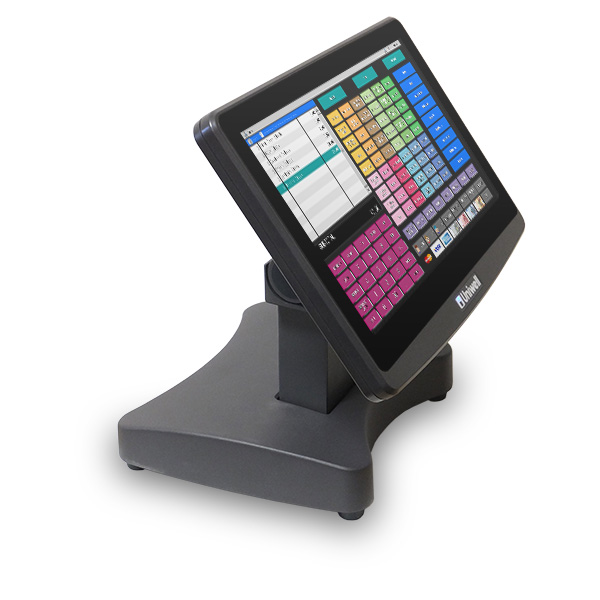

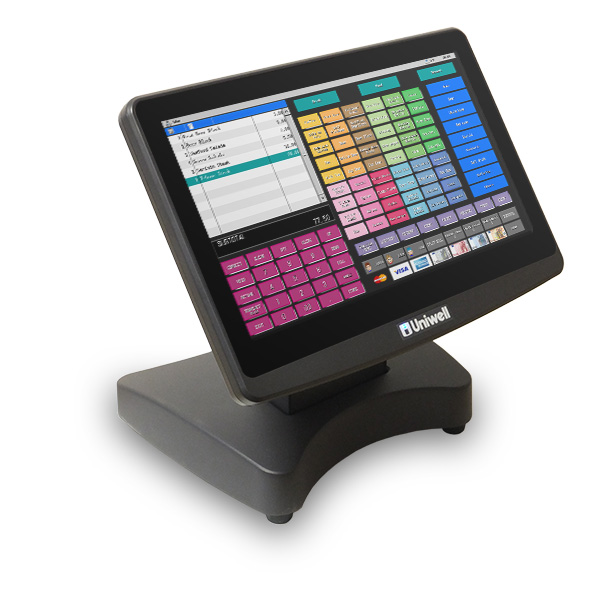

Rotated view angle

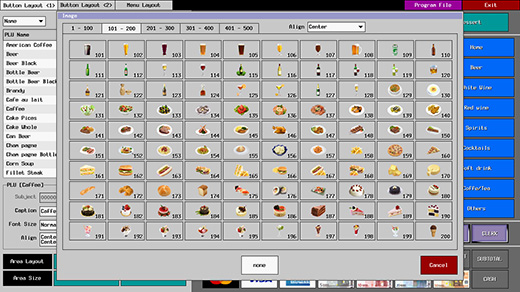

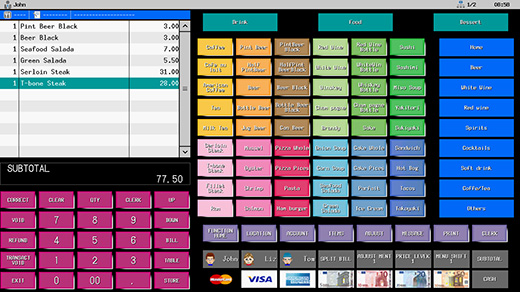

Screen image of HX-3500 software type-03 (Example with some graphical buttons)

Built-in graphical buttons are customizable by BMP file

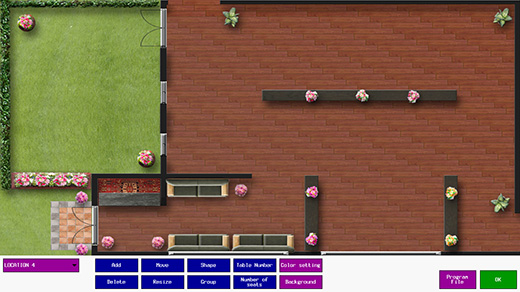

Graphical Table Plan: Different layout is available for up to 8 locations.

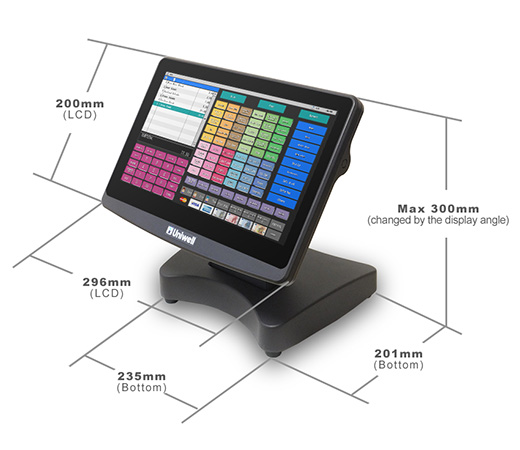

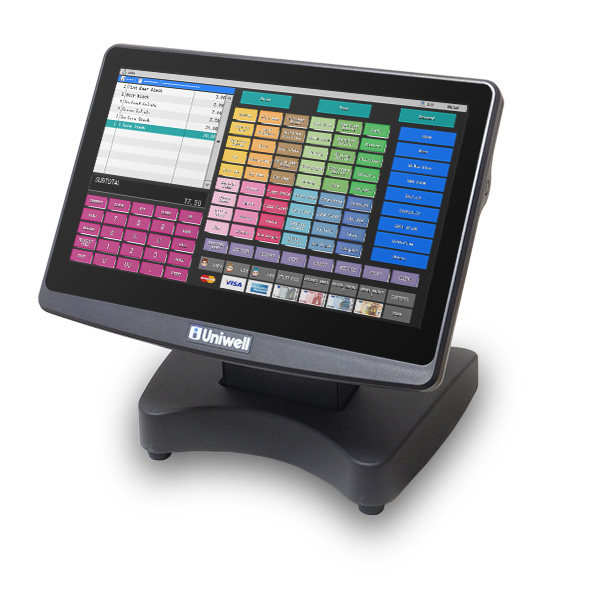

Compact & small footprint

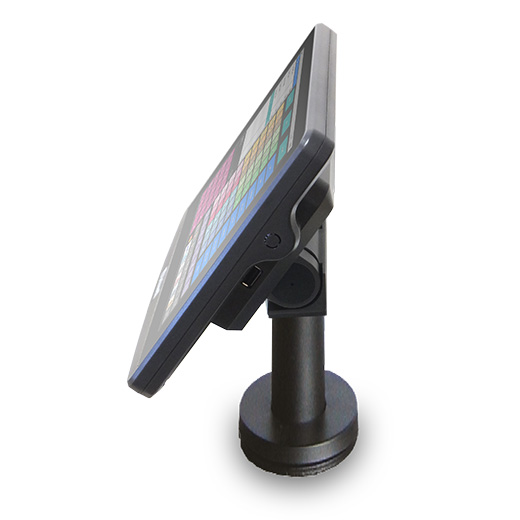

Versatile mounting options: counter or pole (dealer option).<br />
(HX-3500 has VESA Mounting Interface Standard MIS-D75, 75 mm X 75 mm, M4)

Versatile mounting options: counter or pole (dealer option).
(HX-3500 has VESA Mounting Interface Standard MIS-D75, 75 mm X 75 mm, M4)

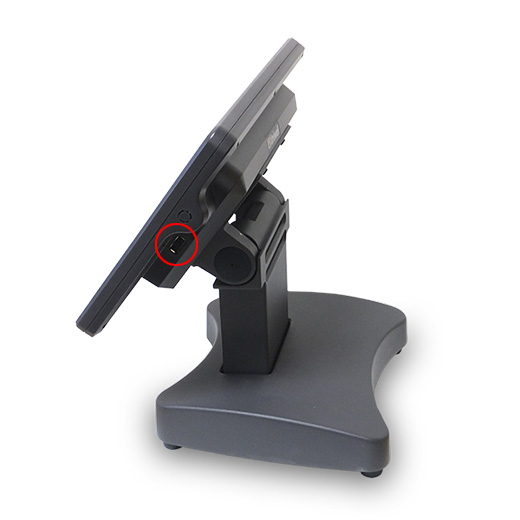

Easy access to USB port

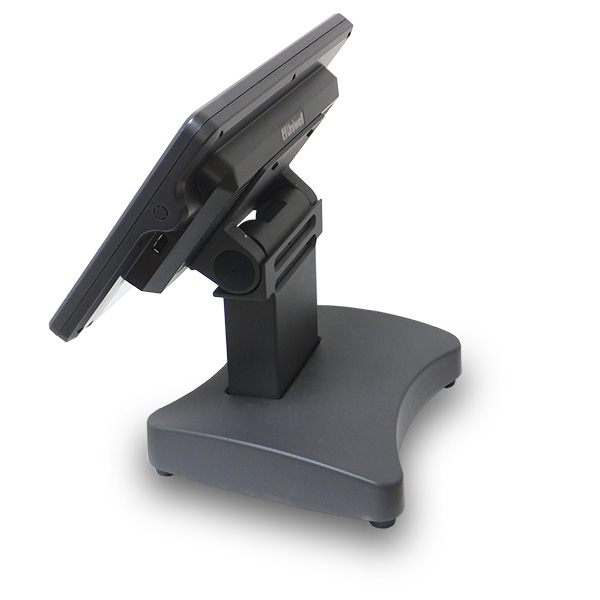

Option: POS stand Arm<br />

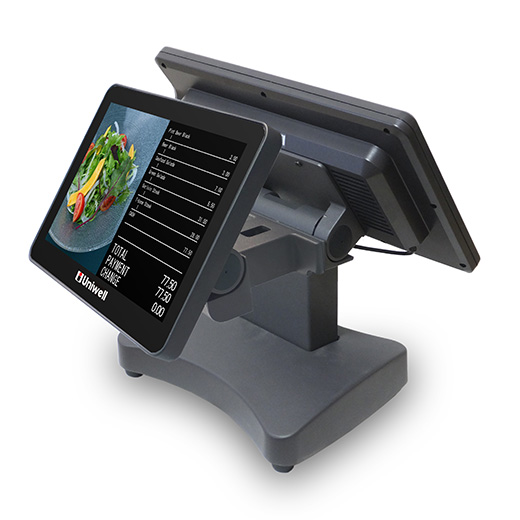

Option: Customer LCD display<br />
DP101A-U (USB/10.1 inch TFT display)

Option: POS stand Arm
Option: Customer LCD display
DP101A-U (USB/10.1 inch TFT display)

Interfaces

Port	Cable	For
Ethernet / Wi-Fi	LAN	PC (Back office) FTP comm. with PC (Report, Program maintenance, Firmware update) UDP data streaming (Journal data monitoring and analysis) Internet (Head office, Web ordering) Remote access/Remote maintenance Ethernet / Wi-Fi IRC (max 32units) (Floating Track, IRC report, Program download, etc.) Kitchen/Receipt printer (shared Ethernet, Wi-Fi, Bluetooth, USB, RS-232C total max 20units) Kitchen video system EFT terminal External loyalty Caller ID
Bluetooth		Kitchen/Receipt printer (shared Ethernet, Wi-Fi, Bluetooth, USB, RS-232C total max 20units)
COM 1	RS232C	Printer (kitchen, receipt, slip) Caller ID EFT terminal NFC terminal 2 line customer display/customer LCD Barcode scanner Scale Journal data transfer Room transfer Coin note recycler Drink dispenser etc.
USB x5	USB	Receipt printer (shared Ethernet, Wi-Fi, Bluetooth, USB, RS-232C total max 20units) Barcode scanner Storage device PC keyboard Mouse LCD graphic customer display RFID reader Biometric scanner (Finger print reader)
micro SD Card		Data backup Control data and graphic image for ''LCD graphic customer display''
Drawer1&2	Rj11	12V drive, one connecter for the two drawers with open sensor
